A small industrial-controls prototype

Making the sorting logic observable from PLC to HMI

This project started with a simple sorting line. A part reaches the infeed sensor, gets a type, then either moves to a side stream through a pusher or continues to the exit. The real task was not the conveyor animation but a sequence that stays understandable.

First I split ownership inside the PLC. Ladder owns mode, startup, permissives, final commands, and common fault state. Structured Text owns the part cycle: it latches the type, waits for feedback, handles timeouts, and updates counters.

Then I connected the loop: operator action → PLC logic → command → model feedback → HMI state. This is a desktop learning simulation, not a production or safety-certified system.

PLC → HMI

logic, sensors and HMI
OpenPLC
Ignition Perspective

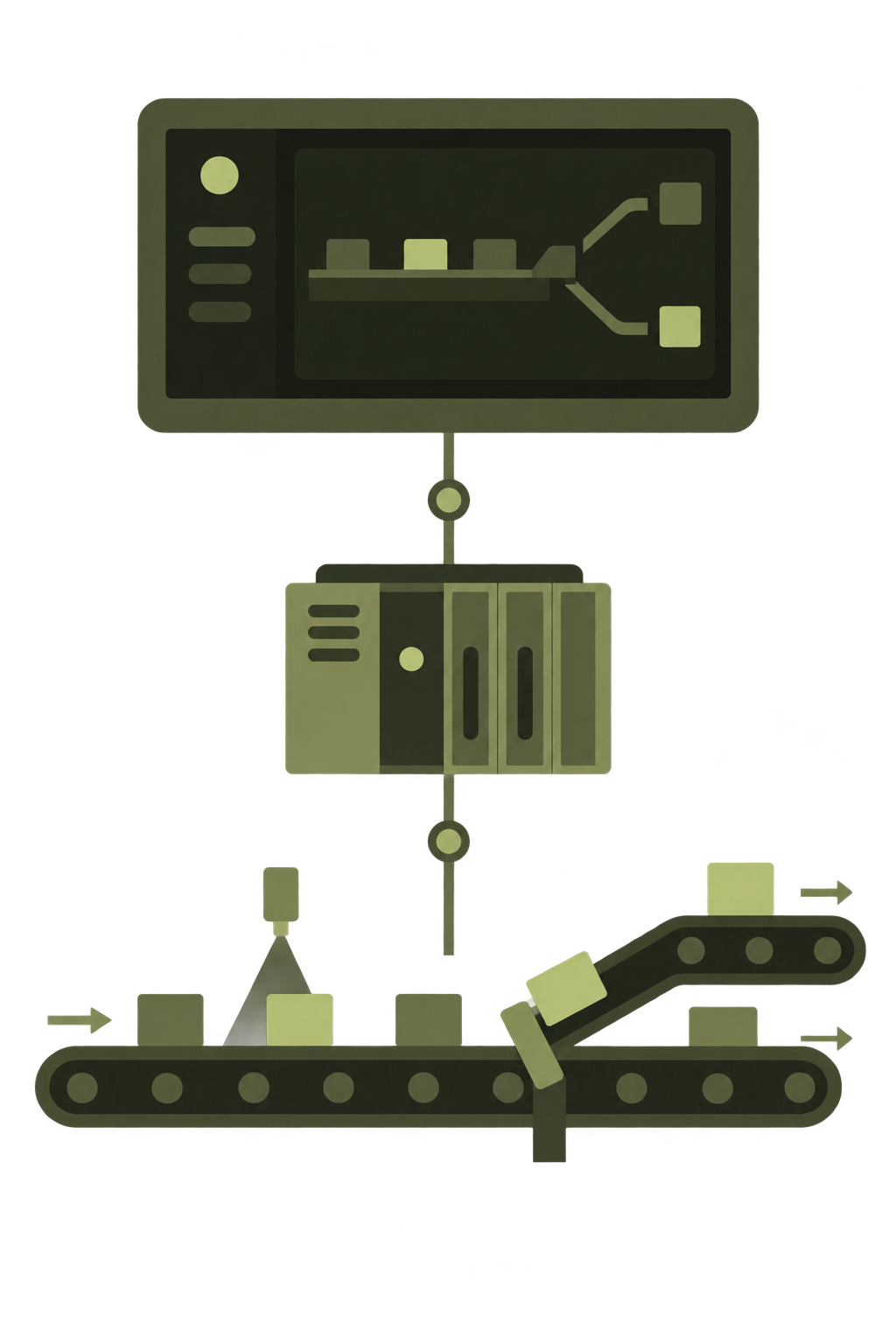

Conveyor Sorting Summary

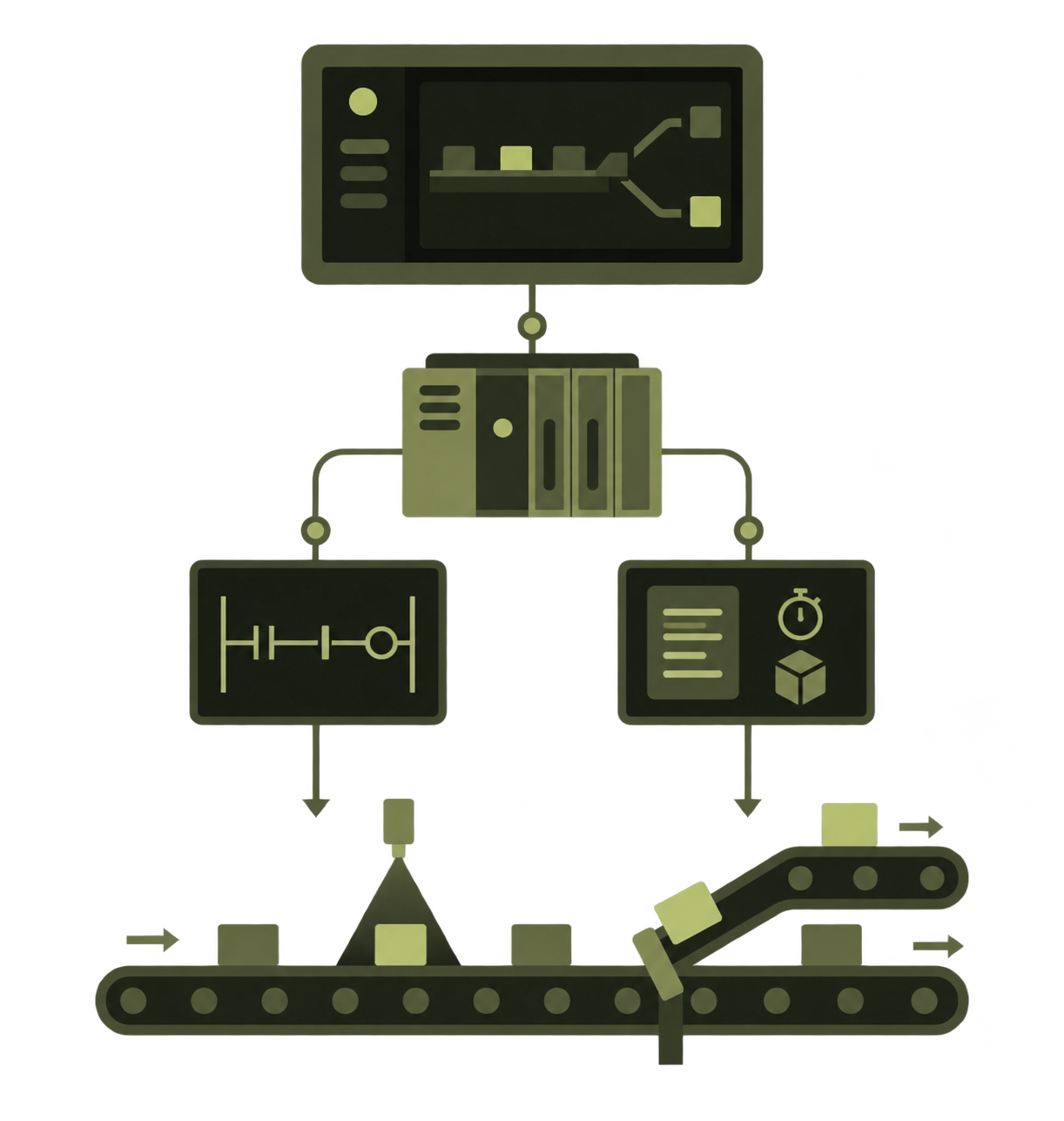

OpenPLC: ladder and ST

Split responsibility first

Ladder owns mode, Run latch, permissives, final commands, and common fault state. Structured Text owns part state, timeouts, and counters. That keeps a final command from receiving writes from two logic blocks.

Conveyor Sorting Overview
One part at a time

At PE_Infeed, the PLC latches type A or B. It does not accept the next part until the active cycle is complete.

Type-A route

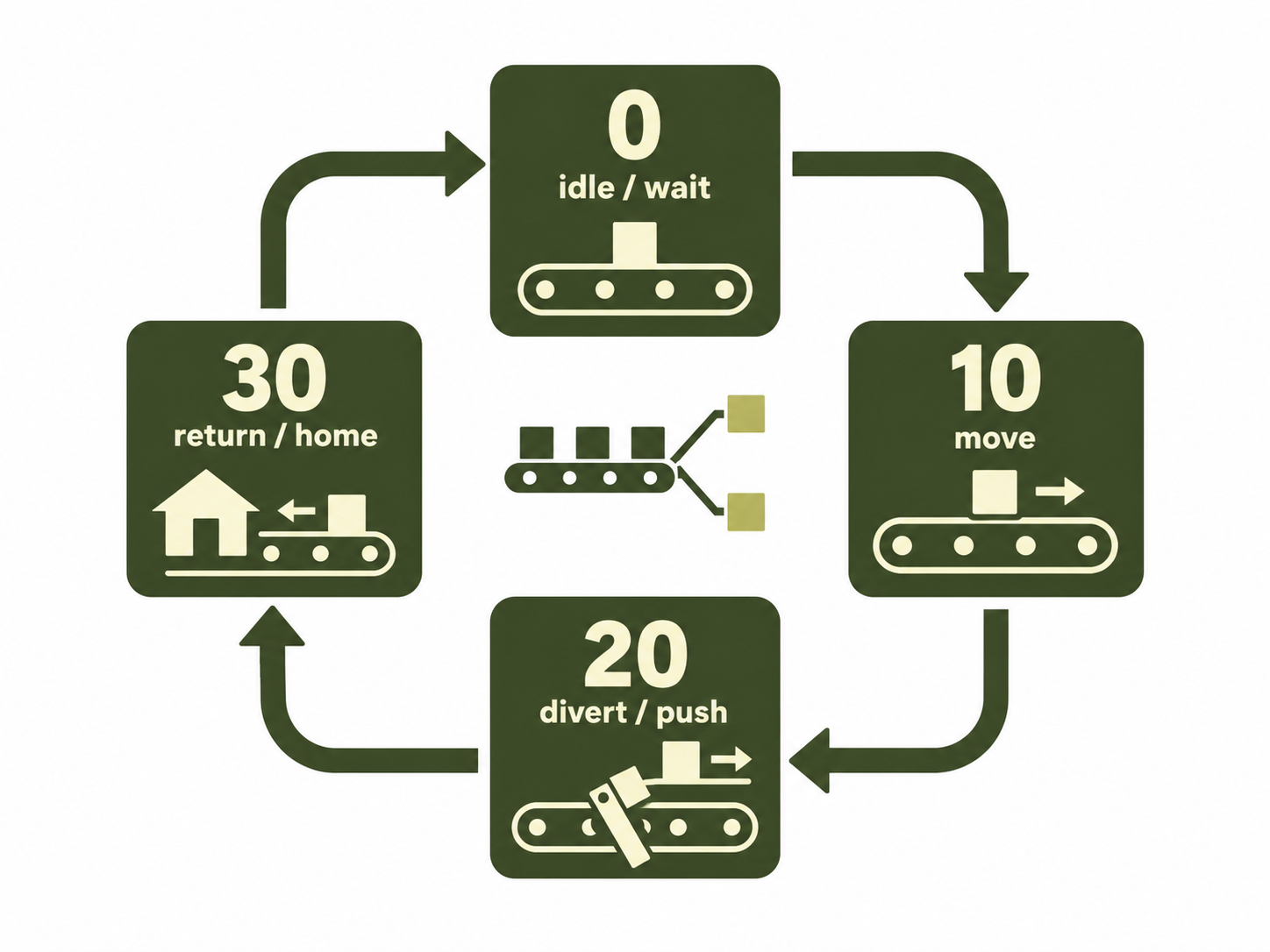

For type A, the cycle follows 10 → 20 → 30 → 0: travel to divert, extend feedback, return home, then increment Type A/Total.

Timeouts and faults

No required PE or pusher feedback: the sequence moves to state 90 and removes automatic commands. Reset returns to idle; it does not start another cycle.

Conveyor Sorting Step

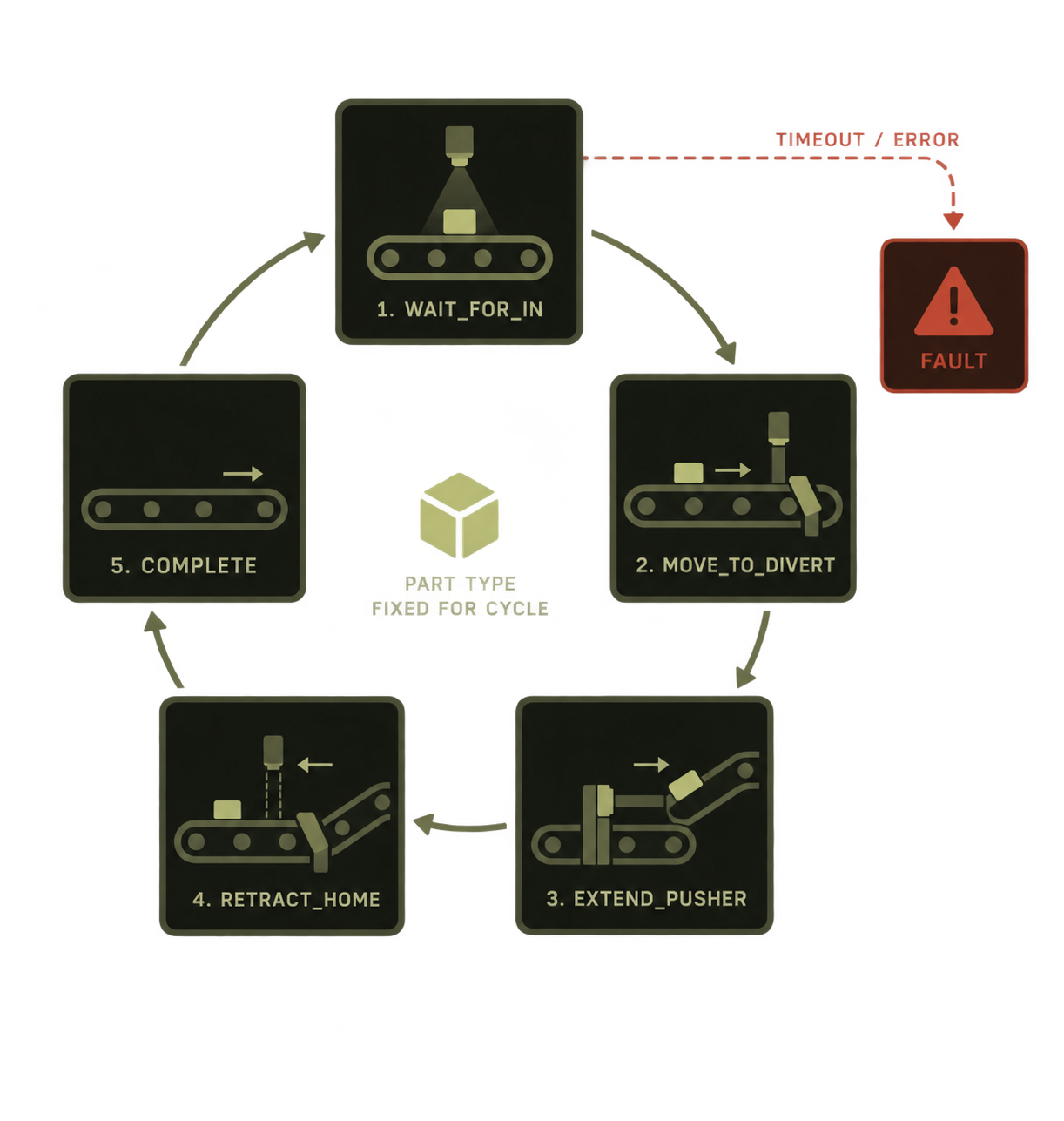

Structured Text: state machine

Make the part cycle explicit

The ST block takes the latched part type through infeed, travel to divert, pusher extension, return home, and completion. Every wait has its own timeout and fault transition.

Conveyor Sorting Overview
Latch the part type

At PE_Infeed, the state machine stores type A or B. It keeps using that value, so a changing external signal cannot reroute a part halfway through its cycle.

Separate decision from execution

Ladder creates commands and permissives. ST does not write equipment directly; it provides sequence state, fault, and counters. The final command has one writer.

Handle missing feedback

If a sensor or Pusher_Extended does not arrive in time, the state machine enters state 90. Automatic commands are removed. A new cycle needs Reset and a new Start.

Structured Text · State 0
CASE Sequence_State OF
    0:
        IF Mode_Auto_Active AND Run_Active
           AND Pusher_Home AND PE_Infeed THEN
            Active_Part_Type_A := Part_Type_A;
            IF Part_Type_A THEN
                Sequence_State := 10;
            ELSE
                Sequence_State := 50;
            END_IF;
        END_IF;
END_CASE;

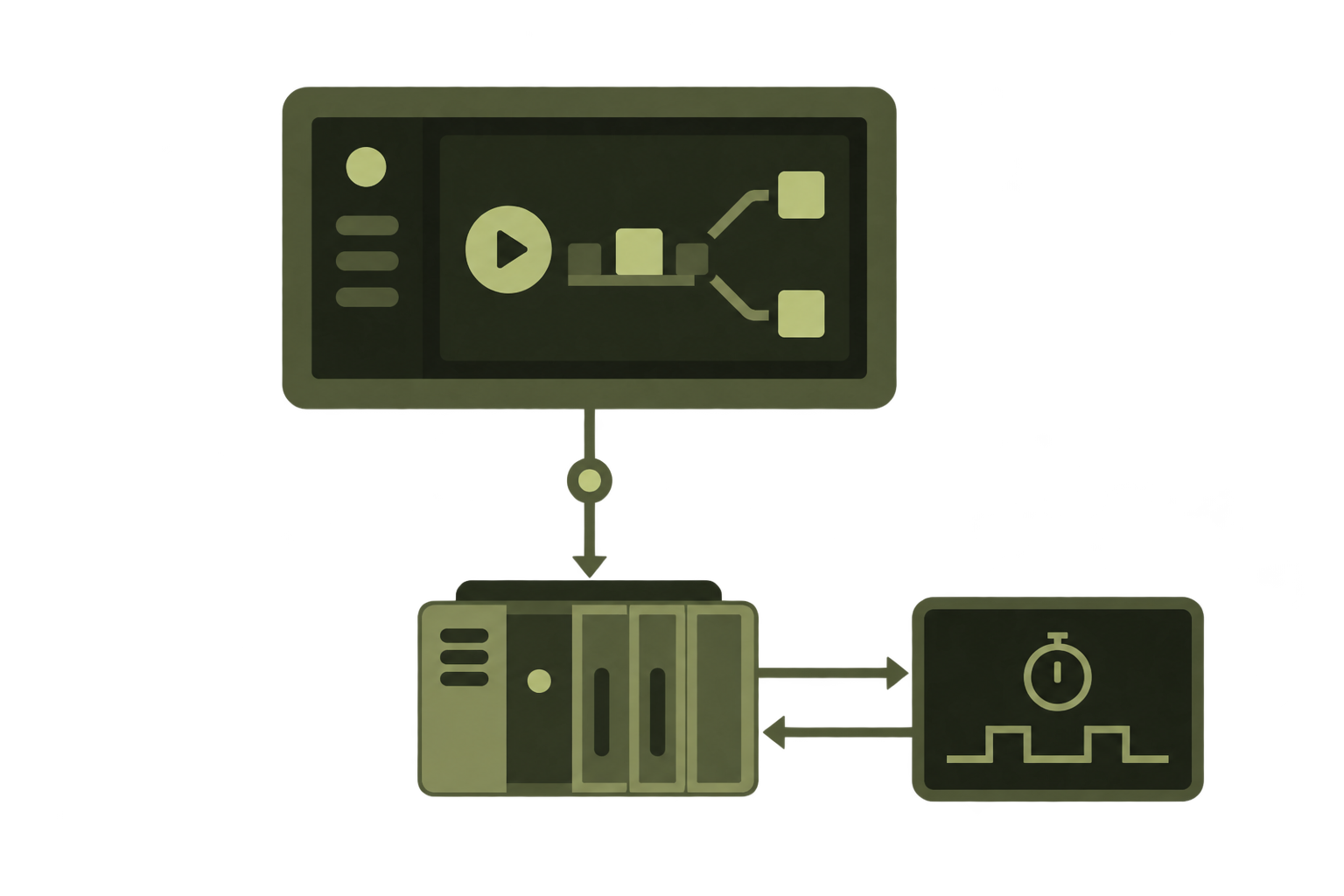

Perspective and process model

Show controller state, not local UI state

Perspective keeps Auto, Start/Stop/Reset, sensor status, pusher feedback, fault, and three counters on one screen. The Gateway Timer models only inputs and feedback. Commands, faults, and counts stay in the PLC.

Conveyor Sorting Overview

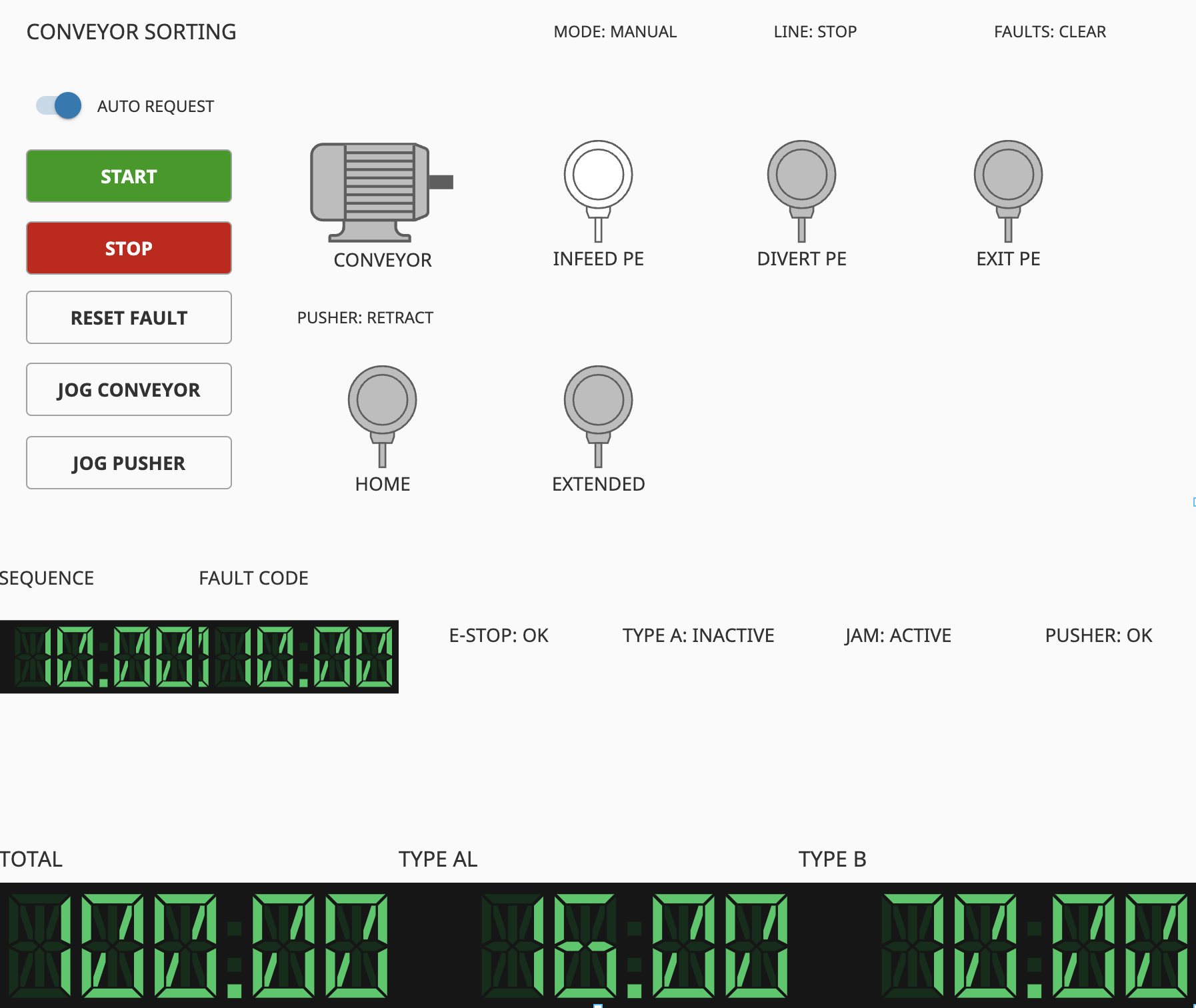

Operator screen

The screen holds commands, line status, conveyor, three PE sensors, pusher feedback, fault cause, and separate counters.

Deterministic feedback

A 200 ms Gateway Timer alternates A/B. For A it produces PE_Infeed → PE_Divert → Extended → Home with margin inside the PLC's 2 s watchdog.

Observed normal path

In the test cycle, type A changed Total/A/B from 10/4/6 to 11/5/6. Then type B changed 11/5/6 to 12/5/7. No active fault appeared.

Conclusions:

  1. A finite state machine keeps a sequence readable
  2. Clear writer boundaries between HMI, model, and PLC avoid ambiguous state
  3. Timeouts need to be designed with feedback, not added afterward
