Pump Station Simulator

Show the data path from OPC UA to SQL and HMI

This case study is not about a single screen. I built the data path for one pump: commands and feedback in OPC UA, a process model in the Gateway, SQLite snapshots, and the state an operator sees in Perspective.

I started with the tags and the pump behaviour. Then I moved persistence into Named Queries and checked that SQL shows the same process with an understandable time difference. Only after that did I build the screen where live state and the latest database record appear together.

The practical goal was to start the pump, see values change, persist them in history, and run through a controlled fault and recovery. This is a learning prototype, not a production or safety-certified system.

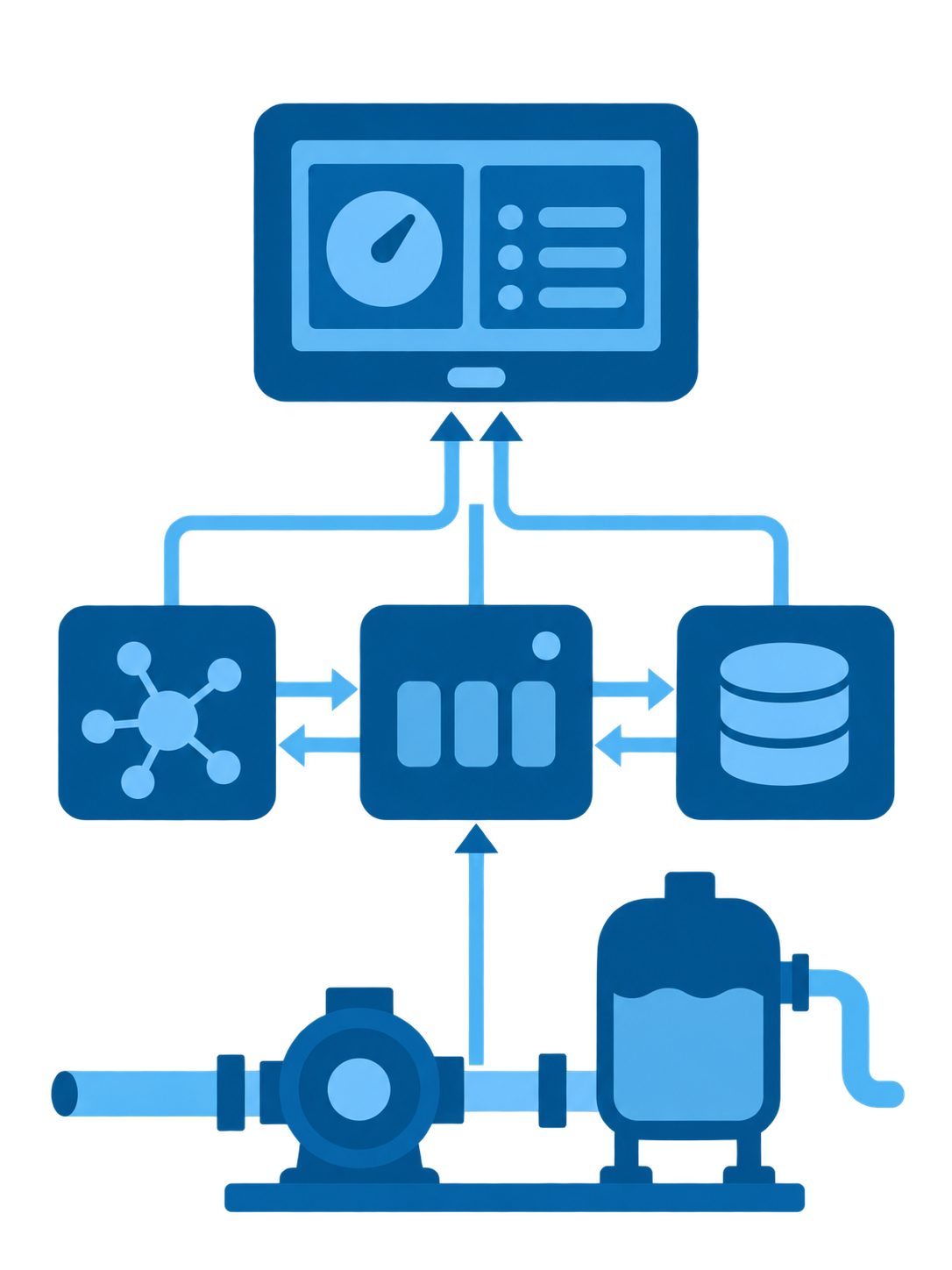

OPC UA → SQL → HMI

one pump · snapshot every 5 seconds

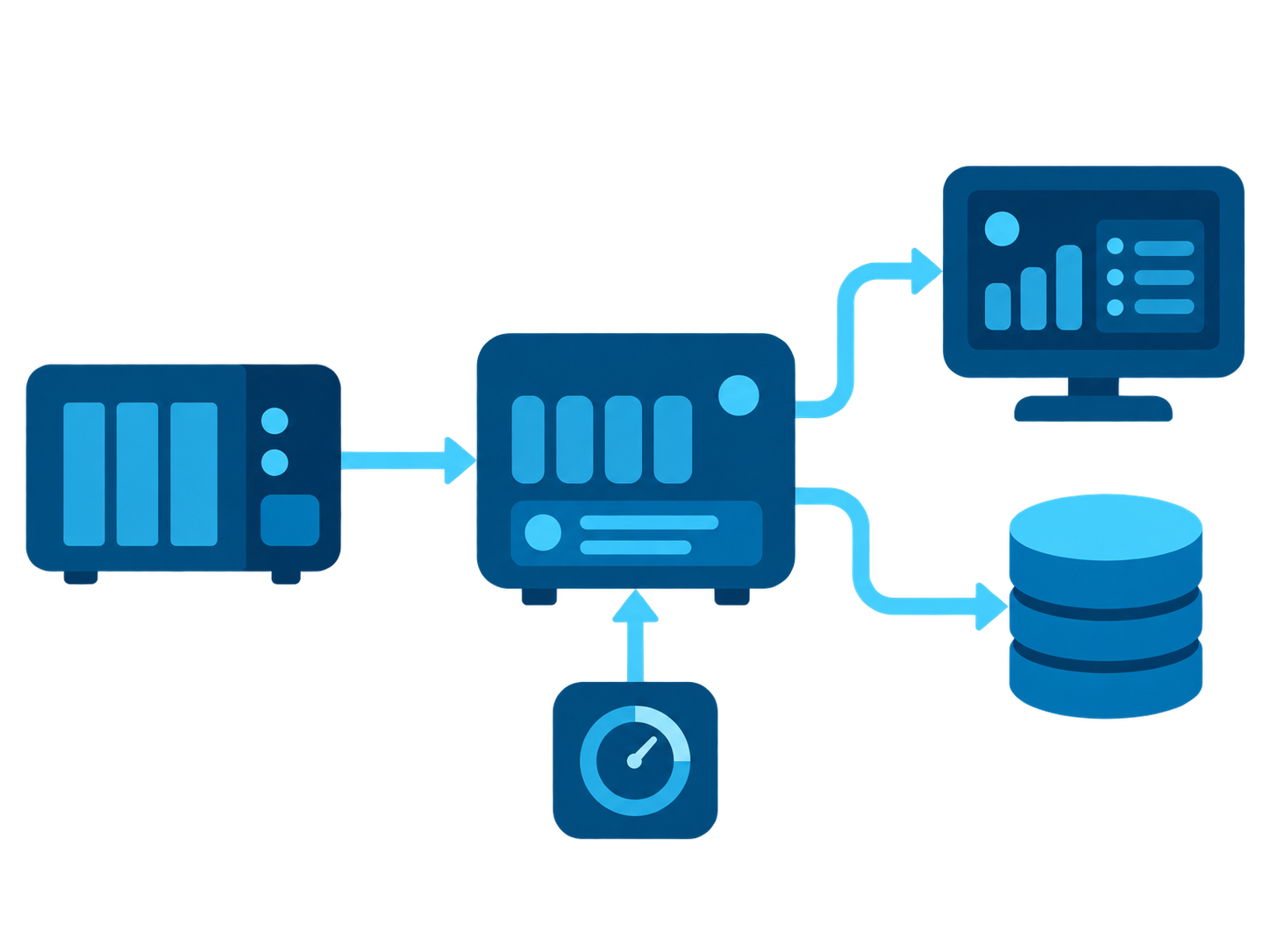

OPC UA and Gateway

Give the HMI and SQL one source of data

I started with a programmable OPC UA device. It contains commands, statuses, process values, and counters. The Gateway Timer reads requests once per second, calculates the pump response, and writes only the actual feedback.

Endpoint and namespace

I first connected to the OPC UA endpoint and checked the namespace. This establishes where Ignition reads data from and which node paths the project uses.

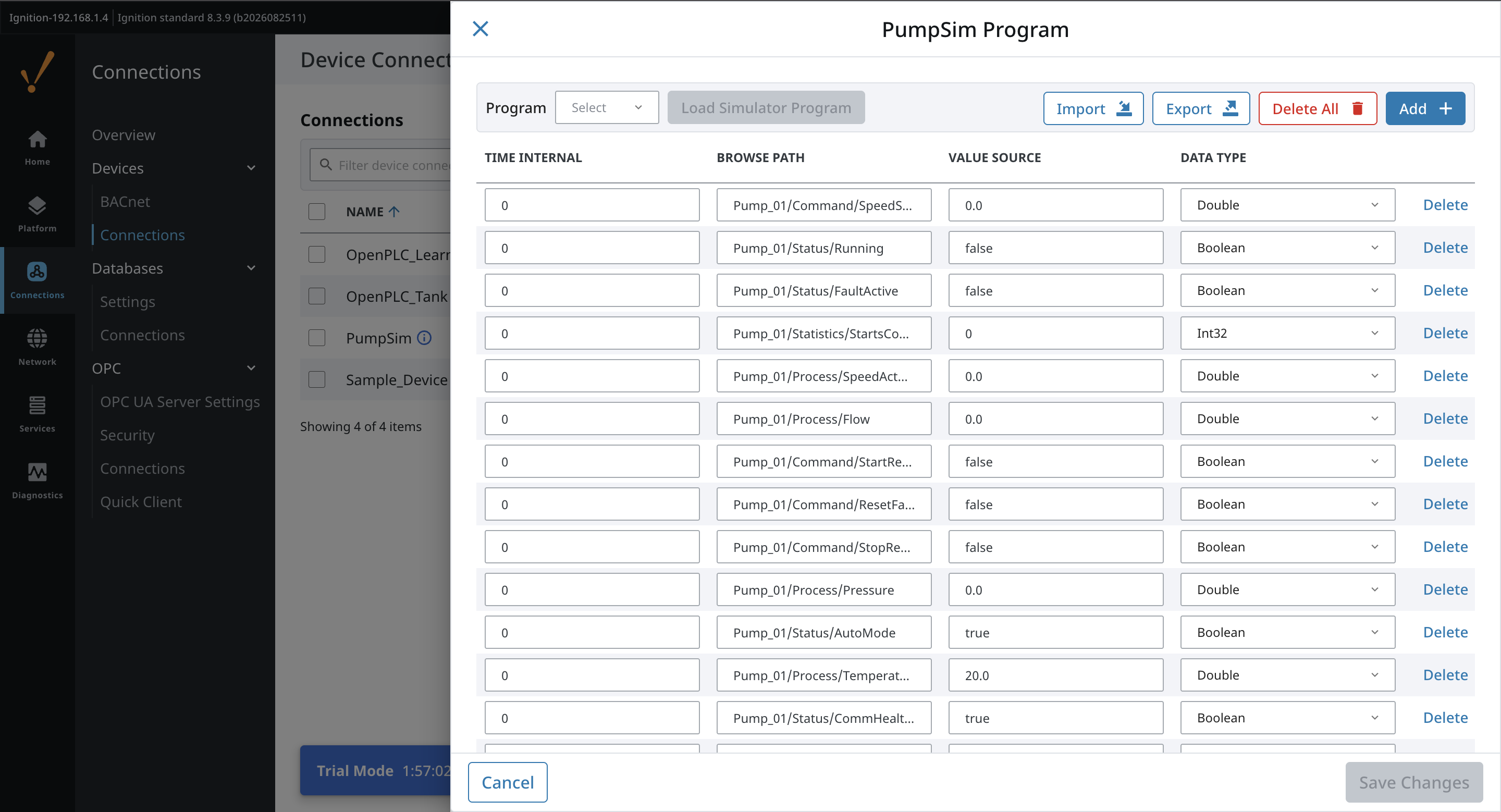

Browsing and node contract

Using browsing, I checked the Pump_01 structure and fixed nodes for commands, statuses, process values, and counters. StartRequest remains a request, not the actual pump state.

Subscriptions and feedback

Subscriptions update Running, FaultActive, speed, pressure, temperature, and flow. The Gateway model calculates them, and both the HMI and SQL logger read the same values.

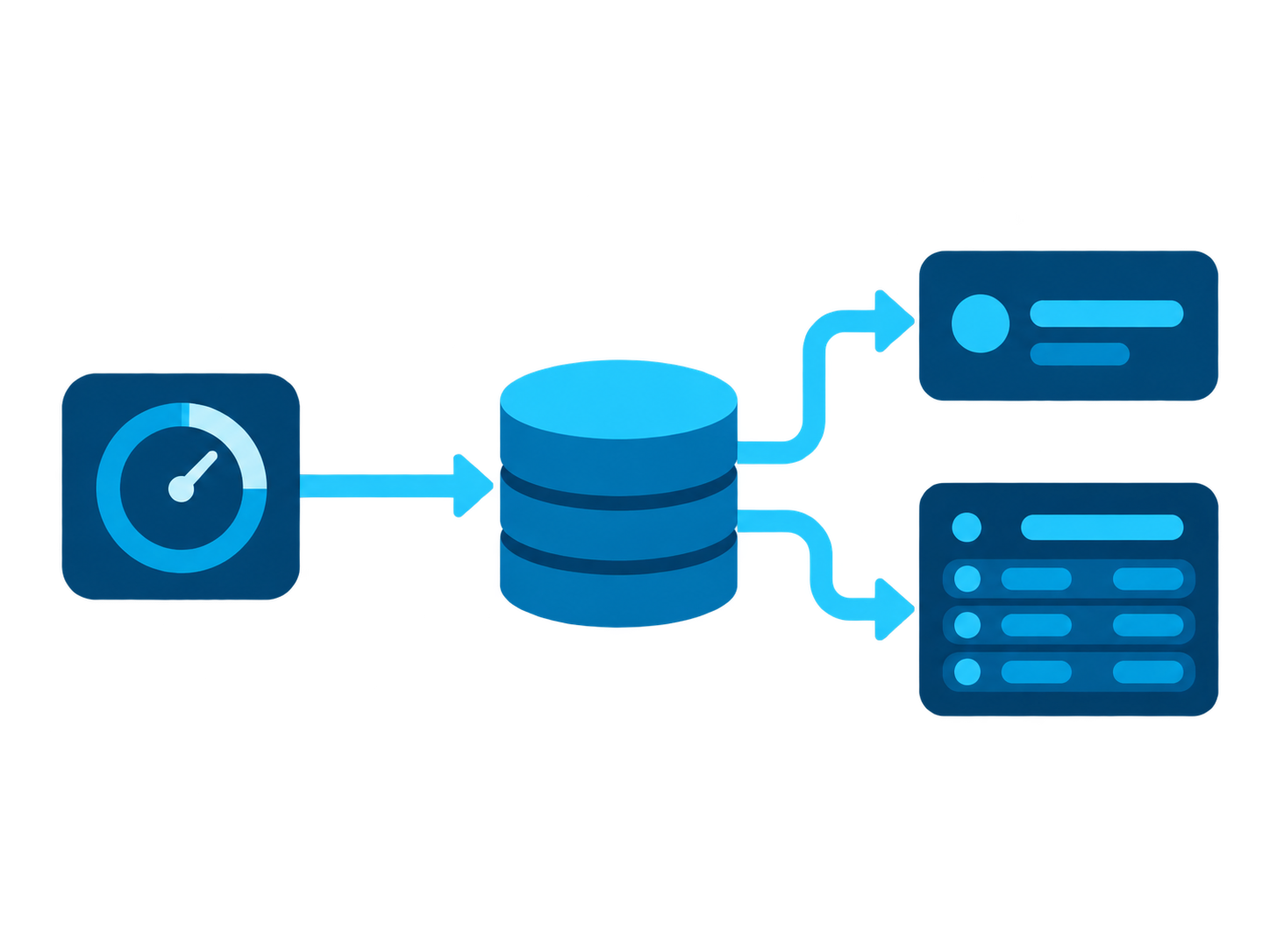

SQLite and Named Queries

Persist the process separately from the screen

After the model, I added a second Gateway Timer. It saves a snapshot to SQLite every five seconds. Named Queries return the latest row for the SQL panel and the last ten minutes of history for the table.

What is stored in a snapshot

Each row stores time, Pump_01, state, speed, pressure, temperature, and flow. The database therefore records a process fact, not a screen state.

Latest SQL record

GetLatestPumpSnapshot returns the newest persisted snapshot for a dedicated panel. It is not a copy of live tags; it is the result of a SQLite write.

Ten-minute history

GetPumpHistoryWindow returns recent rows with the newest first. A small difference from the live value is expected during a ramp because SQL writes every five seconds.

SQLite · schema and insert

CREATE TABLE IF NOT EXISTS process_snapshot (
    id INTEGER PRIMARY KEY AUTOINCREMENT,
    captured_at TEXT NOT NULL DEFAULT CURRENT_TIMESTAMP,
    equipment_id TEXT NOT NULL,
    running INTEGER NOT NULL,
    fault_active INTEGER NOT NULL,
    speed_actual REAL NOT NULL,
    pressure_bar REAL NOT NULL,
    temperature_c REAL NOT NULL,
    flow_m3h REAL NOT NULL
);

INSERT INTO process_snapshot (
    equipment_id,
    running,
    fault_active,
    speed_actual,
    pressure_bar,
    temperature_c,
    flow_m3h
) VALUES (
    :equipment_id,
    :running,
    :fault_active,
    :speed_actual,
    :pressure_bar,
    :temperature_c,
    :flow_m3h
);

GetLatestPumpSnapshot

SELECT
    id, captured_at, equipment_id, running, fault_active,
    speed_actual, pressure_bar, temperature_c, flow_m3h
FROM process_snapshot
WHERE equipment_id = :equipment_id
ORDER BY id DESC
LIMIT 1;

GetPumpHistoryWindow

SELECT
    captured_at, running, fault_active, speed_actual,
    pressure_bar, temperature_c, flow_m3h
FROM process_snapshot
WHERE equipment_id = :equipment_id
  AND captured_at >= datetime(
      'now',
      '-' || :lookback_minutes || ' minutes'
  )
ORDER BY captured_at DESC;

-- equipment_id: String (Pump_01)
-- lookback_minutes: Int4 (10)

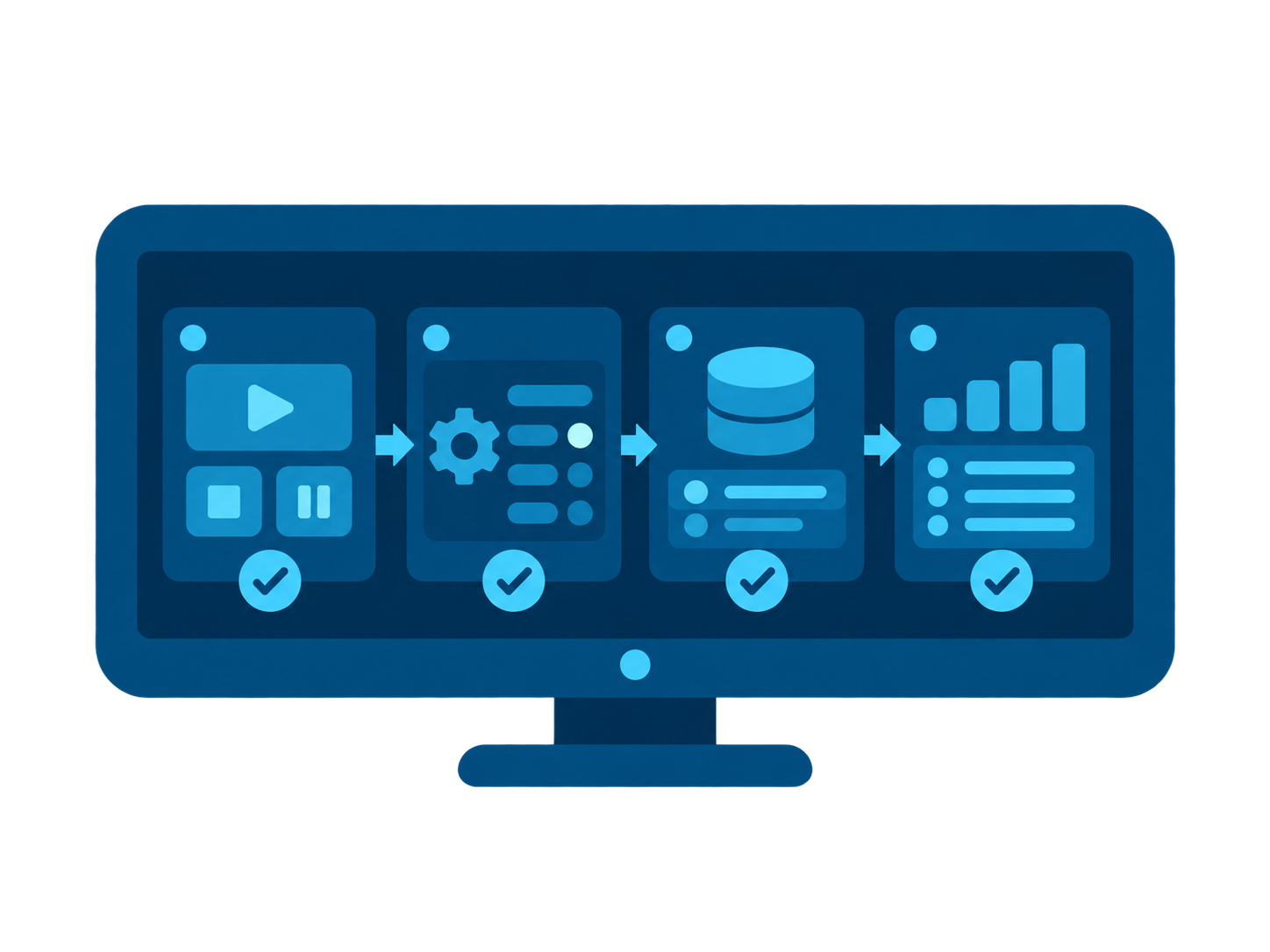

Ignition Perspective

Verify the complete path in one scenario

Once communication and persistence were stable, I built the operator screen. Commands, live OPC UA state, the latest SQL record, and history sit together, so the full path from command to persisted result can be checked instead of a single tag or query.

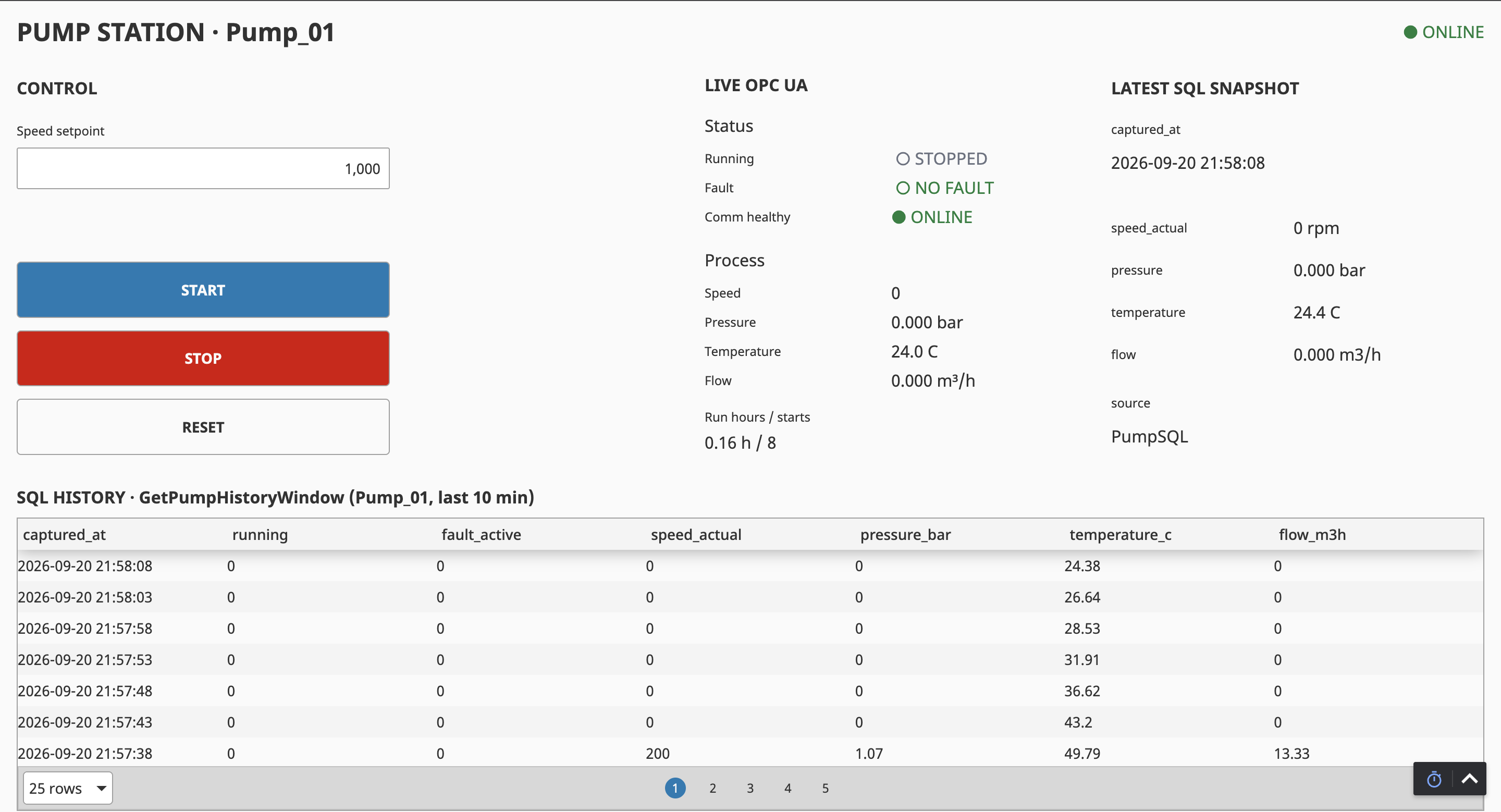

Stop and cooldown

After STOP, the screen reports STOPPED. Speed, pressure, and flow return to zero, temperature decays toward ambient, and SQL keeps the complete cooldown trace.

Normal start

After entering a setpoint and pressing START, the pump enters RUNNING and ramps toward the target. SQL shows the changing speed, pressure, temperature, and flow.

Fault and recovery

At the trip condition, the model stops the pump and persists the transition into faulted cooldown. Once it has cooled, RESET permits a new start.

What this project demonstrates:

How OPC UA, Gateway logic, SQLite, and HMI work as one chain
How to check a process in live tags and persisted history at the same time
How to show a complete scenario: start, run, persist, fault, stop, reset, and restart
